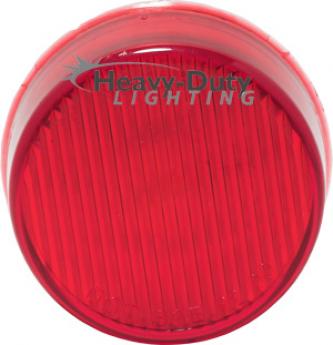

HD20010R (10 LED)
 Technical Specifications:                                                                      Optional Accessories:
LED's - 10 5mm Red Diodes
Diameter - 2.05"
Depth - 0.71"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 100 mA
Grommet # HD20095G
Chrome Grommet Cover #HD20096PC
Connectors #HD00020 or HD00021

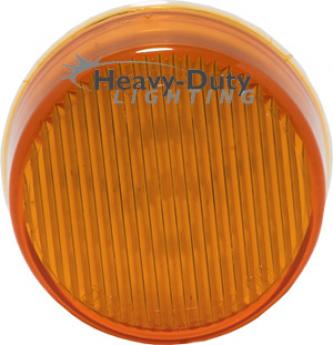

HD20010Y (10 LED)
LED's - 10 5mm Amber Diodes
Diameter - 2.05"
Depth - 0.71"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 120 mA
Grommet # HD20095G
Chrome Grommet Cover #HD20096PC
Connectors #HD00020 or HD00021

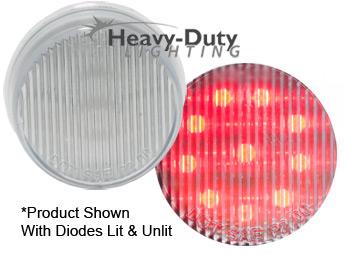

HD20010RC (10 LED)
 Technical Specifications:                                                                      Optional Accessories:
LED's - 10 5mm Red Diodes
Diameter - 2.05"
Depth - 0.71"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 100 mA
Grommet # HD20095G
Chrome Grommet Cover #HD20096PC
Connectors #HD00020 or HD00021
 Technical Specifications:                                                                    Optional Accessories:

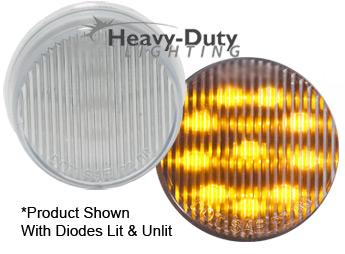

HD20010YC (10 LED)
LED's - 10 5mm Amber Diodes
Diameter - 2.05"
Depth - 0.71"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 120 mA
Grommet # HD20095G
Chrome Grommet Cover #HD20096PC
Connectors #HD00020 or HD00021
2" Round RED Clearance Marker
2" Round AMBER Clearance Marker $7.10 ea
2" Round RED Clearance Marker / Clear Lens $7.10 ea
2" Round AMBER Clearance Marker / Clear Lens $7.10 ea

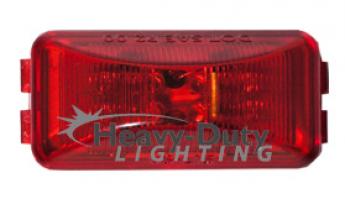

HD25108R (8 LED)

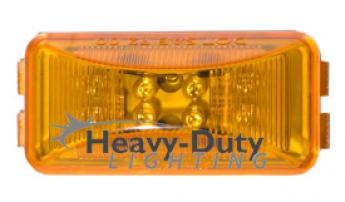

HD25108Y ( 8 LED)
 Technical Specifications:                                                                       Available Mounting Base:
LED's - 8 5mm Red Diodes
Width - 2.52"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 100mA
Chromed ABS - #HD25109PC
Black ABS - #HD25109BP
LED's - 8 5mm Red Diodes
Width - 2.52"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 100mA
 Technical Specifications:                                                       Available Mounting Base:
Chromed ABS - #HD25109PC
Black ABS - #HD25109BP
2-1/2" Rectangular RED 2- Pin
Clearance Marker (base not included)

2-1/2" Rectangular Amber 2- Pin
Clearance Marker (base not included)

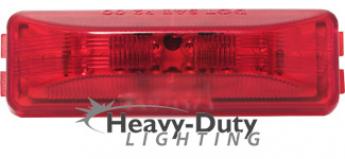

HD40112R (12 LED)

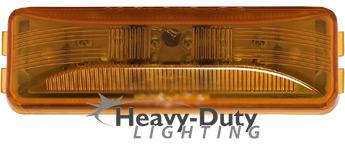

HD40112Y (12 LED)
 Technical Specifications:                                                                    Available Mounting Base:
 Technical Specifications:                                                                     Available Mounting Base:
LEDs - 12 5mm Red Diodes
Width - 3.74"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 150mA

Chromed ABS # HD40113PC
Black ABS - # HD40113BP
LEDs - 12 5mm Amber Diodes
Width - 3.74"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 140mA

Chromed ABS # HD40113PC
Black ABS - # HD40113BP
4" Rectangular RED 2-Pin Clearance Marker (base not included)
4" Rectangular AMBER 2-Pin Clearance Marker (base not included)
 Technical Specifications:                                                                    Available Mounting Base:

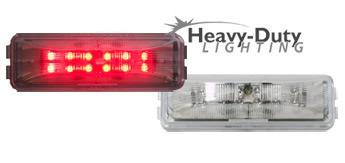

HD40112RC (12 LED)

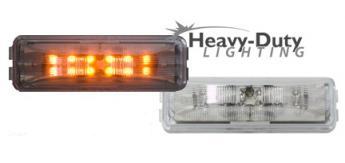

HD40112YC (12 LED)
 Technical Specifications:                                                                     Available Mounting Base:
LEDs - 12 5mm Red Diodes
Width - 3.74"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 150mA

Chromed ABS # HD40113PC
Black ABS - # HD40113BP
LEDs - 12 5mm Amber Diodes
Width - 3.74"
Height - 1.22"
Depth - 0.83"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 140mA

Chromed ABS # HD40113PC
Black ABS - # HD40113BP
4" Rectangular RED 2-Pin Clearance Marker / Clear Lens (base not included)
4" Rectangular AMBER 2-Pin Clearance Marker / Clear Lens (base not included)

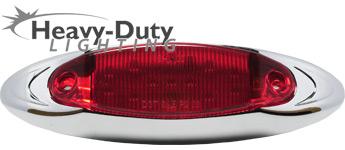

HD60813R (13 LED)

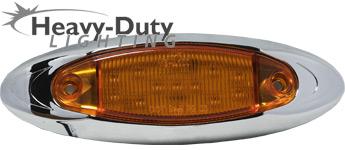

HD60813Y (13 LED)

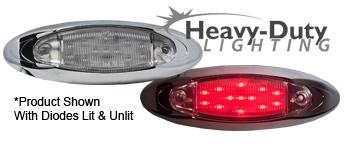

HD60813RC (13 LED)

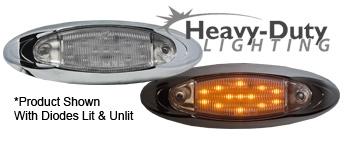

HD60813YC (13 LED)
 Technical Specifications:
 Technical Specifications:
 Technical Specifications:
 Technical Specifications:
6" Chrome Oval RED Clearance Marker
LED's 13 5mm Red Diodes
Width - 6.7"
Height - 2.32"
Depth - 0.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 130mA
Surface Mount with two screws (included)
Also includes Chromed ABS Bezel
Base Gasket Included
Pre-wired with 2 male terminals /
No Connector Required
Mounting Holes 4" On Center
6" Chrome Oval Amber Clearance Marker
LED's 13 5mm Amber Diodes
Width - 6.7"
Height - 2.32"
Depth - 0.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 130mA
Surface Mount with two screws (included)
Also includes Chromed ABS Bezel
Base Gasket Included
Pre-wired with 2 male terminals /
No Connector Required
Mounting Holes 4" On Center
6" Chrome Oval RED Clearance Marker / Clear Lens
LED's 13 5mm Red Diodes
Width - 6.7"
Height - 2.32"
Depth - 0.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 130mA
Surface Mount with two screws (included)
Also includes Chromed ABS Bezel
Base Gasket Included
Pre-wired with 2 male terminals /
No Connector Required
Mounting Holes 4" On Center
LED's 13 5mm Amber Diodes
Width - 6.7"
Height - 2.32"
Depth - 0.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw - 130mA
Surface Mount with two screws (included)
Also includes Chromed ABS Bezel
Base Gasket Included
Pre-wired with 2 male terminals /
No Connector Required
Mounting Holes 4" On Center
6" Chrome Oval Amber Clearance Marker / Clear Lens

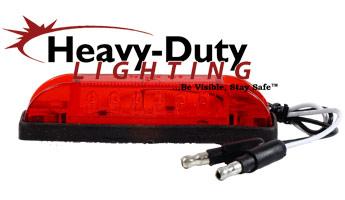

HD40106R (6 LED)

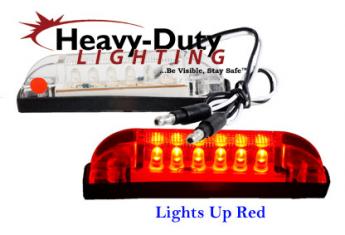

HD40106RC (6 LED)

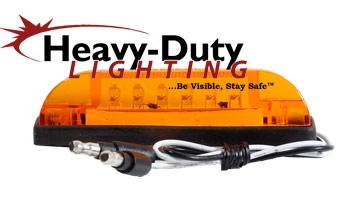

HD40106Y (6 LED)

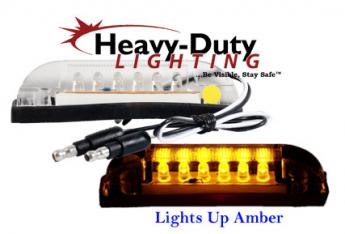

HD40106YC (6 LED)
 Technical Specifications:
LED's - 6 5mm RED Diodes
Width - 3.86"
Height - .71"
Depth - .95"
Mounting Holes 2.82" On Center
Voltage Range - 7.5 - 14 VDC
Amp Draw - 50mA
Rubber Base Gasket Included
Pre-wired with 2 male terminals / No Connector Required
(Female Continuous Loom Available for Easy Installation
#HD00020-67F
LED's - 6 5mm RED Diodes
Width - 3.86"
Height - .71"
Depth - .95"
Mounting Holes 2.82" On Center
Voltage Range - 7.5 - 14 VDC
Amp Draw - 50mA
Rubber Base Gasket Included
Pre-wired with 2 male terminals / No Connector Required
(Female Continuous Loom Available for Easy Installation
#HD00020-67F
LED's - 6 5mm AMBER Diodes
Width - 3.86"
Height - .71"
Depth - .95"
Mounting Holes 2.82" On Center
Voltage Range - 7.5 - 14 VDC
Amp Draw - 50mA
Rubber Base Gasket Included
Pre-wired with 2 male terminals / No Connector Required
(Female Continuous Loom Available for Easy Installation
#HD00020-67F
LED's - 6 5mm AMBER Diodes
Width - 3.86"
Height - .71"
Depth - .95"
Mounting Holes 2.82" On Center
Voltage Range - 7.5 - 14 VDC
Amp Draw - 50mA
Rubber Base Gasket Included
Pre-wired with 2 male terminals / No Connector Required
(Female Continuous Loom Available for Easy Installation
#HD00020-67F
 Technical Specifications:
 Technical Specifications:
 Technical Specifications:
4" Slim-Line Rectangular RED / 2-Wire Clearance Marker
4" Slim-Line Rectangular RED / 2-Wire Clearance Marker / Clear Lens
4" Slim-Line Rectangular AMBER / 2-Wire Clearance Marker
4" Slim-Line Rectangular AMBER / 2-Wire Clearance Marker / Clear Lens
 Technical Specifications:                                                                      Optional Accessories:
