HL Series
LIGHTS
// PERFORMANCE. PERIOD.
THE HIGH LUMEN SERIES. These high lumen lights have a wide, side-to-side beam that illuminates an entire area. Extremely bright (500-600+ lumens) and can spread light out into the sides and corners of any area.

Ideal for smaller areas where you need a lot of light.  HL Lighting will  reveal what may be hiding in poorly lit areas.

With the HL Series, you have the latest technology in high lumen lights.
PERFORMANCE CHARACTERISTICS
TYPICAL USES
• High-lumen beam

• Delivers maximum illumination

• Provides a good level of candela
• Clearing a dark scene or searching an alley.

• Vehicle stops or search

• Wherever you want wide scene illumination,
  while still being small enough to fit into your
  pocket.

 Our first hand-held, lithium battery-powered programmable flashlight that provides 600 lumens of light with 253 meters of beam distance.


•Ten-Tap™ Programming – Choice of three user selectable programs:
 1.) high/strobe/low
 2.) high only
 3.) low/high
 •C4® LED technology, impervious to shock with a 50,000 hour lifetime
 •3 light output levels:
 High – 16,000 candela peak beam intensity, 600 Lumens, 1.25 hours    runtime
 Low – 800 candela peak beam intensity, 33 Lumens, 18 hours runtime
 Strobe - 2.5 hours runtime
 •Multi-function, push-button tail switch for one-handed operation

•Optimized electronics provide regulated intensity
 •Durable anodized machined aircraft aluminum construction
 •Anti-roll head prevents the light from rolling away when you set it down
 •Removable pocket clip
 •O-ring sealed glass lens
 •IPX7; waterproof to 1 meter for 30 minutes
 •1 meter impact resistance tested
 •Uses two 3V CR123A lithium batteries (included)
 •Barrel diameter: 1.0" (2.54 cm)
 •Length: 5.40" (13.7 cm)
 •Weight: 5.6 oz. (159g) with batteries
 •Limited lifetime warranty

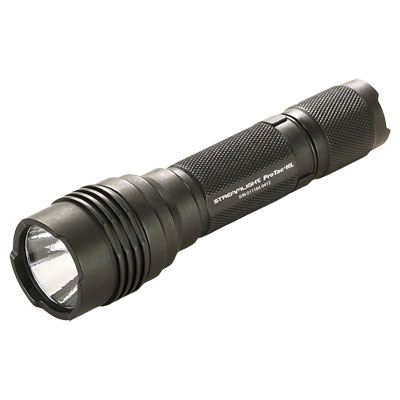

PROTAC HL®

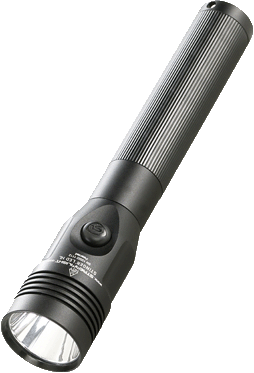

STINGER LED HL®
•Multi-function On/Off push-button switch lets you choose three lighting modes and strobe
•Three modes and strobe:
- High for a super-bright beam - 640 lumens; 22,000 candela peak beam intensity; 297 meter beam distance; runs 1.25 hours
- Medium for bright light and longer run times – 340 lumens; 11,000 candela peak beam intensity; 210 meter beam distance; runs 2 hours
- Low for light without glare and extended run times – 170 lumens; 5,500 candela peak beam intensity; 148 meter beam distance; runs 4 hours
- Strobe for disorienting or signaling your location; runs 3 hours
•Deep-dish parabolic reflector produces a concentrated beam with optimum peripheral illumination
•C4® LED technology, impervious to shock with a 50,000 hour lifetime
•Optimized electronics provide regulated intensity throughout battery charge
•3-cell, 3.6 Volt Ni-MH sub-C battery, rechargeable up to 1000 times
•10 hr. steady charge, 2.5 hr. fast charge, or PiggyBack charger options
•Machined aircraft aluminum body with non-slip rubberized comfort grip; anti-roll rubber ring included
•IPX4 water-resistant; 1 meter impact resistance tested
•Unbreakable polycarbonate lens with scratch-resistant coating
•8.41” (21.36 cm); 12.4 oz (352 g)
•Serialized for positive identification
•Limited lifetime warranty
•Assembled in USA

When you need maximum illumination with a wide beam to search a large area, the Stinger LED HL rechargeable, high lumen flashlight provides a blast of 640 lumens with 297 meters of beam distance.

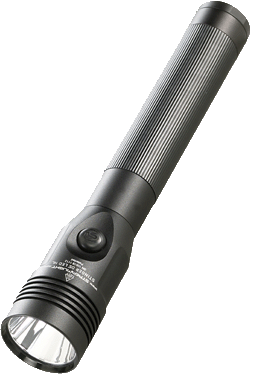

STINGER DS LED HL®
When you need maximum illumination with a wide beam to search a large area, the Stinger DS LED HL rechargeable, high lumen flashlight provides a blast of 640 lumens with 297 meters of beam distance.
•DUAL SWITCH TECHNOLOGY – Access three lighting modes and strobe via the tail cap or the head-mounted switch. Switches operate independently
•Three modes and strobe:
- High for a super-bright beam - 640 lumens; 22,000 candela peak beam intensity; 297 meter beam distance; runs 1.25 hours
- Medium for bright light and longer run times – 340 lumens; 11,000 candela peak beam intensity; 210 meter beam distance; runs 2 hours
- Low for light without glare and extended run times – 170 lumens; 5,500 candela peak beam intensity; 148 meter beam distance; runs 4 hours
- Strobe for disorienting or signaling your location; runs 3 hours
•Deep-dish parabolic reflector produces a concentrated beam with optimum peripheral illumination
•C4® LED technology, impervious to shock with a 50,000 hour lifetime
•Optimized electronics provide regulated intensity throughout battery charge
•3-cell, 3.6 Volt Ni-MH sub-C battery, rechargeable up to 1000 times
•10 hr. steady charge, 2.5 hr. fast charge, or PiggyBack charger options
•Machined aircraft aluminum body with non-slip rubberized comfort grip; anti-roll rubber ring included
•IPX4 water-resistant; 1 meter impact resistance tested
•Unbreakable polycarbonate lens with scratch-resistant coating
•8.85” (22.48 cm); 12.8 oz (364 g)
•Serialized for positive identification
•Limited lifetime warranty
•Assembled in USA

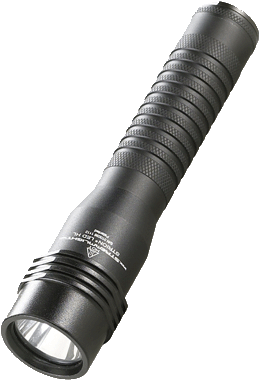

STRION LED HL®
When you need maximum illumination with a wide beam to search a large area the Strion LED HL rechargeable, high lumen flashlight provides a blast of 500 lumens with 200 meters of beam distance.
•Multi-function On/Off push-button tail switch lets you choose three lighting modes and strobe
•Three modes and strobe:
- High for a super-bright beam - 500 lumens; 10,000 candela peak beam intensity; 200 meter beam distance; runs 1 hour
- Medium for bright light and longer run times – 250 lumens; 5,000 candela peak beam intensity; 141 meter beam distance; runs 2 hours
- Low for light without glare and extended run times – 125 lumens; 2,500 candela peak beam intensity; 100 meter beam distance; runs 3.5 hours
- Strobe for disorienting or signaling your location; runs 2.5 hours
•C4® LED technology, impervious to shock with a 50,000 hour lifetime
•Lithium ion battery is rechargeable up to 1000 times; fully recharges in 3 hrs.
•Clamp style charger holder with digital control circuit that prevents over-charge; LED indicates charge status
•IPX4 water-resistant; 2 meter impact resistance tested
•6000 series machined aircraft aluminum with anodized finish
•Borofloat high temperature glass lens
•Anti-roll head prevents the light from rolling away when you set it down
•Grooved barrel adapts to long gun mount
•5.9" (14.99 cm); 5.2 oz. (148 grams)
•Serialized for positive identification
•Limited lifetime warranty
•Assembled in USA

The TLR-1 HL provides a 630 lumen blast of light for maximum illumination while clearing a room or searching an alley. Its wide beam pattern lights up large areas so you can identify who or what is nearby.
TLR-1 HL®
•C4® LED technology, impervious to shock with a 50,000 hour lifetime
•12,000 candela peak beam intensity and up to 630 lumens.
•TIR optic produces a concentrated beam with optimum peripheral illumination
•Run Time: 1.25 hours regulated run time. Solid-state current regulation for consistent illumination level
•Powered by two 3-volt CR123 lithium batteries with 10-year storage life
•Rail grip clamp system securely attaches/detaches quickly and safely with no tools and without putting your hands in front of muzzle
•Mounts directly to handguns with Glock-style rails and to all MIL-STD-1913 (Picatinny) rails.
•Includes keys for Glock-style, Picatinny, Beretta 90two, S&W 99 and S&W TSW
•Machined aluminum sealed construction with black anodized finish
•Ambidextrous momentary/steady on/off switch
•User programmable strobe can be enabled/disabled
•Fits existing light bearing holsters
•3.39” (8.61 cm); 4.18 oz (118.6 grams)
•Operating temperature: -40°F to +120°F.
•IPX7 waterproof to 1 meter for 30 minutes
•Lithium Battery Notice under TECH DOCS
•Remote switches are available as optional accessories and must be used in conjunction with 69130 remote door switch. All switches and door switch are sold separately. Reference TLR Accessories Brochure in DOCS/INFO tab for more information.
•Limited lifetime warranty
•Assembled in USA

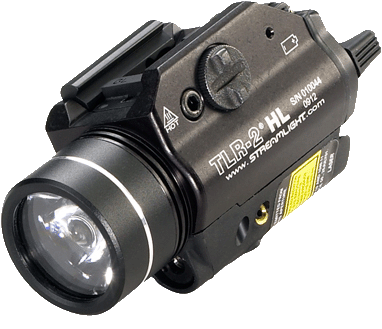

TLR-2 HL®
The TLR-2 HL with red laser provides a 630 lumen blast of light for maximum illumination while clearing a room or searching an alley. Its wide beam pattern lights up large areas so you can identify who or what is nearby.
•C4® LED technology, impervious to shock with a 50,000 hour lifetime; 640-660mm red laser
•12,000 candela peak beam intensity and up to 630 lumens.
•TIR optic produces a concentrated beam with optimum peripheral illumination
•Run Time: 1.25 hours regulated run time. Solid-state current regulation for consistent illumination level; Laser only function runs 45 hours
•Powered by two 3-volt CR123 lithium batteries with 10-year storage life
•Rail grip clamp system securely attaches/detaches quickly and safely with no tools and without putting your hands in front of muzzle
•Mounts directly to handguns with Glock-style rails and to all MIL-STD-1913 (Picatinny) rails.
•Includes keys for Glock-style, Picatinny, Beretta 90two, S&W 99 and S&W TSW
•Machined aluminum sealed construction with black anodized finish
•Ambidextrous momentary/steady on/off switch
•User programmable strobe can be enabled/disabled
•Fits existing light bearing holsters
•3.39” (8.61 cm); 4.78 oz (135.5 grams) with batteries
•Operating temperature: -40°F to +120°F.
•IPX4 water-resistant
•Lithium Battery Notice under TECH DOCS
•Remote switches are available as optional accessories and must be used in conjunction with 69130 remote door switch. All switches and door switch are sold separately. Reference TLR Accessories Brochure in DOCS/INFO tab for more information.
•Limited lifetime warranty
•Assembled in USA

To place an order, call us today at:
817-222-9199
Or, come in and see our complete line of Streamlight® products!
10019 Harmon Rd. Fort Worth, Texas 76177

SL-75713 w AC/DC charger


SL-69260

SL-69261


SL-75453 Light Only

SL-88040


SL-74750
Light Only
TOP SELLER!
TOP SELLER!

SL-75710 Light Only

SL-75454
w AC/DC Charger

SL-74752
w AC/DC charger 2 holders

SL-74751
w AC/DC charger 1 holder
Ph. 817 222-9199    817 306-4499
